Industrial Evaporative Cooler

A business with a large space to cool can count on the HECD evaporative cooling system. HECD systems are the efficient way to cool...at 1/5 the cost of mechanical air conditioning. The innovative evaporative cooling media provides simple and efficient evaporative cooling using water, not refrigerants. Capacities up to 60,000 cfm are available. Water sumps and cooling sections are solid stainless steel. Units are AMCA certified.

Learn More about Direct Evaporative Cooling Products

Direct Evaporative Cooling

Features

  • Standard evaporative cooling media is cross fluted cellulose with up to 90% effectiveness at 400 fpm face velocity.
  • Optional, UL 900 class 2 rated fiberglass evaporative media is available for applications where fire/smoke ratings are necessary.
  • Primary washer section and drain pan are manufactured in 304 stainless steel.
  • Stainless steel drain pan is designed for complete drainage of the pan.
  • Water distribution manifold is schedule 40 PVC with metered orifices.
  • Manually set, brass body, water flow rate regulator valve.
  • Built-n submersible sump pump with float operated valve maintains proper water level and distribution.
  • Optoinal prefilter protects evaporative media.
  • Optional motorized discharge dampers for improved airflow control.
  • Available mixing box section.
Read More

Literature

Take a look at our complete Literature Library for even more information

Literature Library

90% Effectiveness at 400 fpm

Effective Cooling for Large Spaces

HECD systems are the efficient way to cool...at 1/5 the cost of mechanical air conditioning. The innovative evaporative cooling media provides simple and efficient evaporative cooling using water, not refrigerants. Capacities up to 60,000 cfm are available. Optional, UL 900 class 2 rated fiberglass evaporative media is available for applications where fire/smoke ratings are necessary.

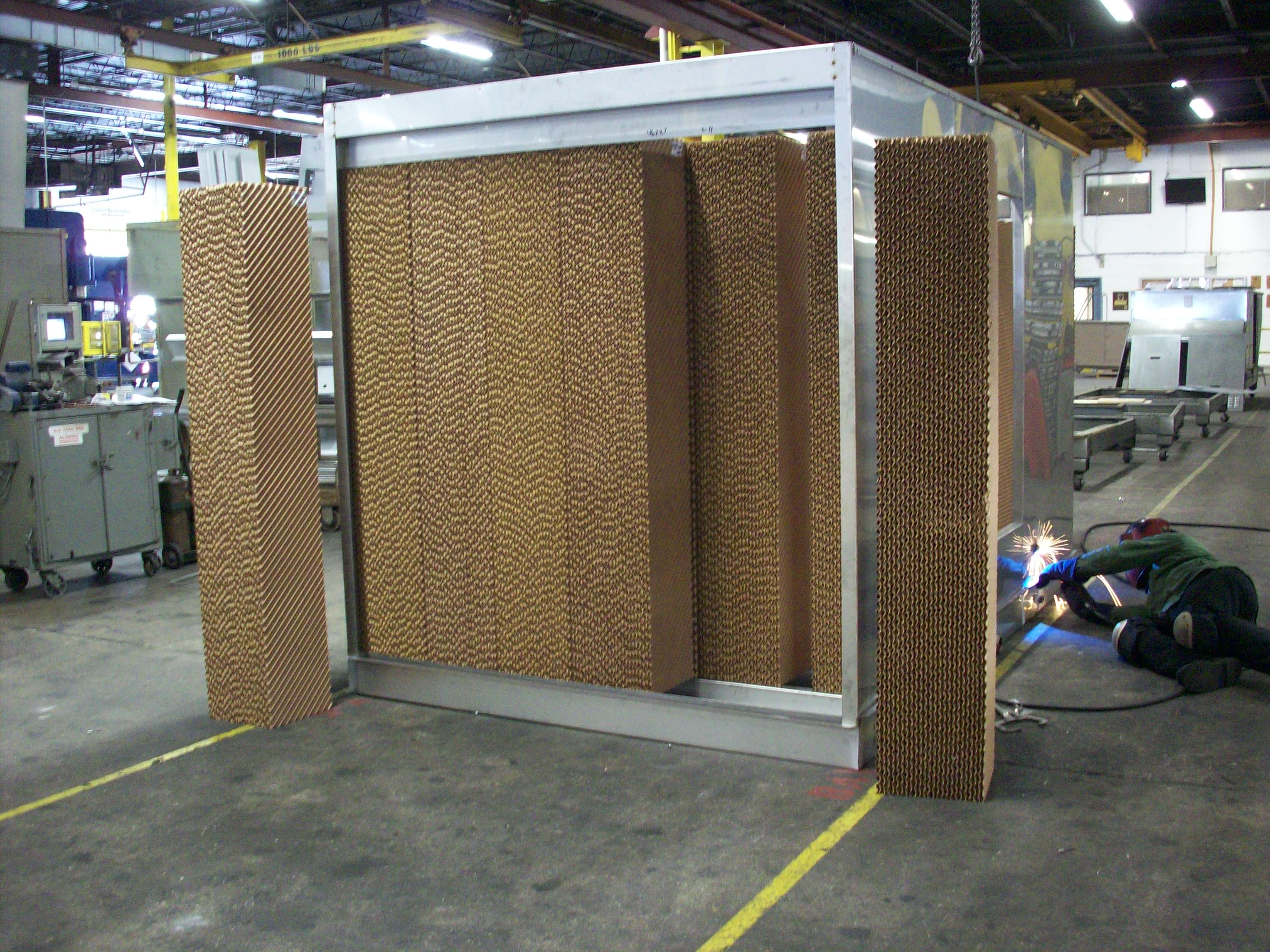

ASC Evap Section

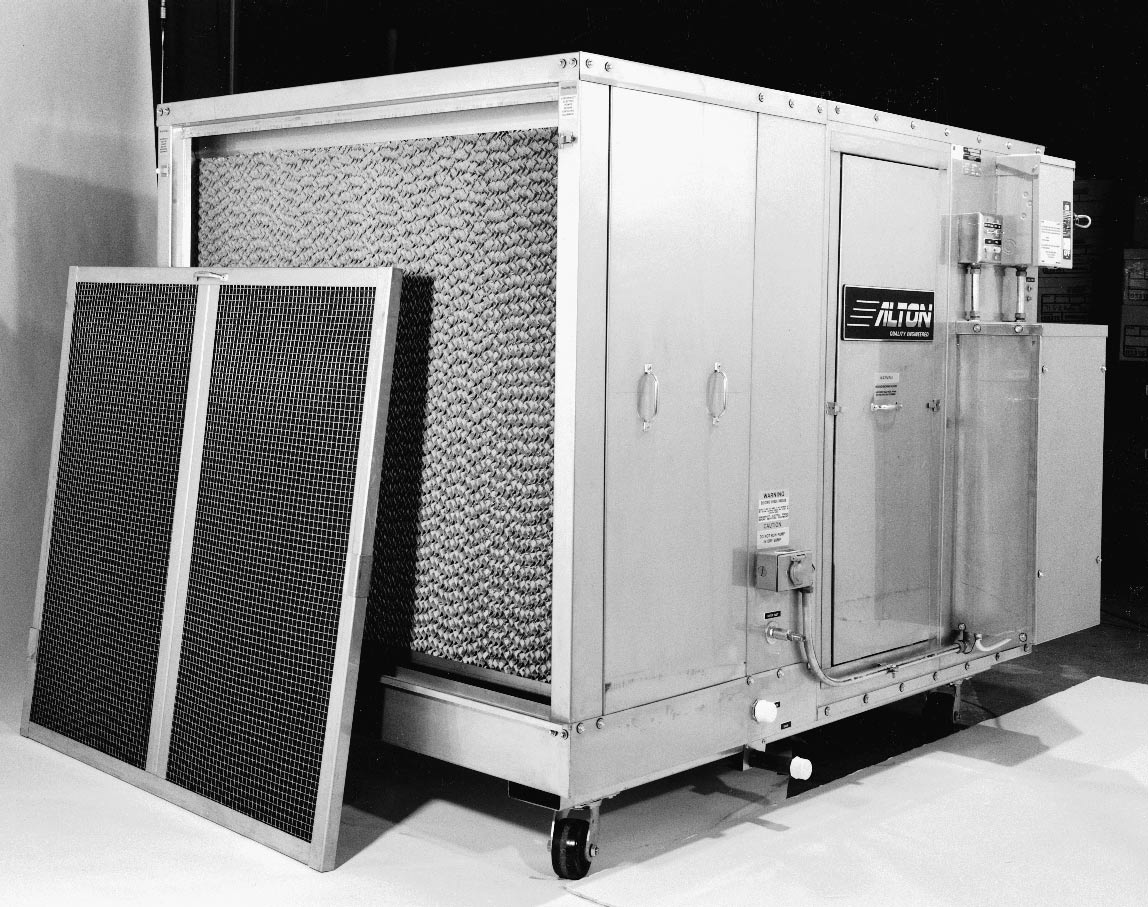

HECD Rear View

Optoinal prefilter protects evaporative media.

Reduced maintenance costs

Keeping an evaporative cooling unit operating at its maximum requires clean evaporative media. The cellulose or fiberglass media tends to be expensive so in order to help you control the cost of maintenance Temprite offers the option of washable pre-media that will extend the life of the more expensive media.

Access Panels at Key Areas

Simpliefied component access

When working on a roof to replace evaporative media the last thing a technician needs is to have to deal with multiple screws or fasteners to complete the job. The HECD has access panels with handles and simpler twist locks to make life easier for technicians.

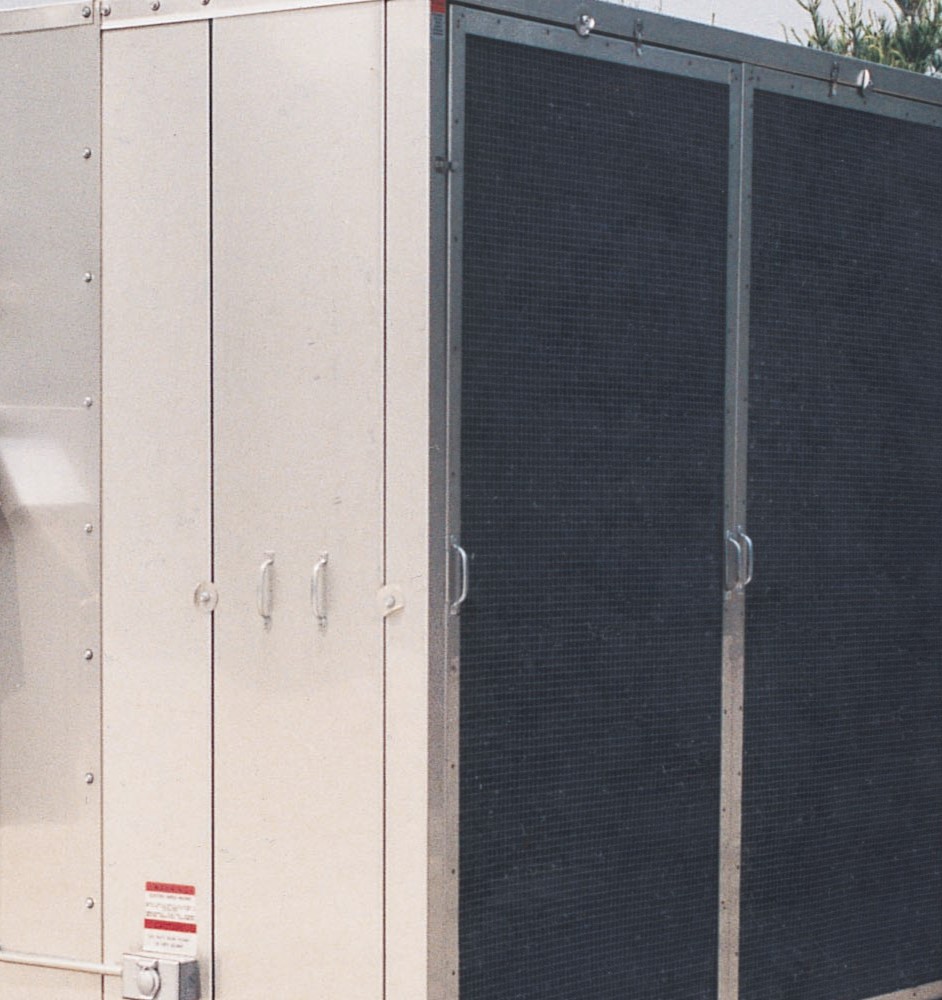

HECD access panel

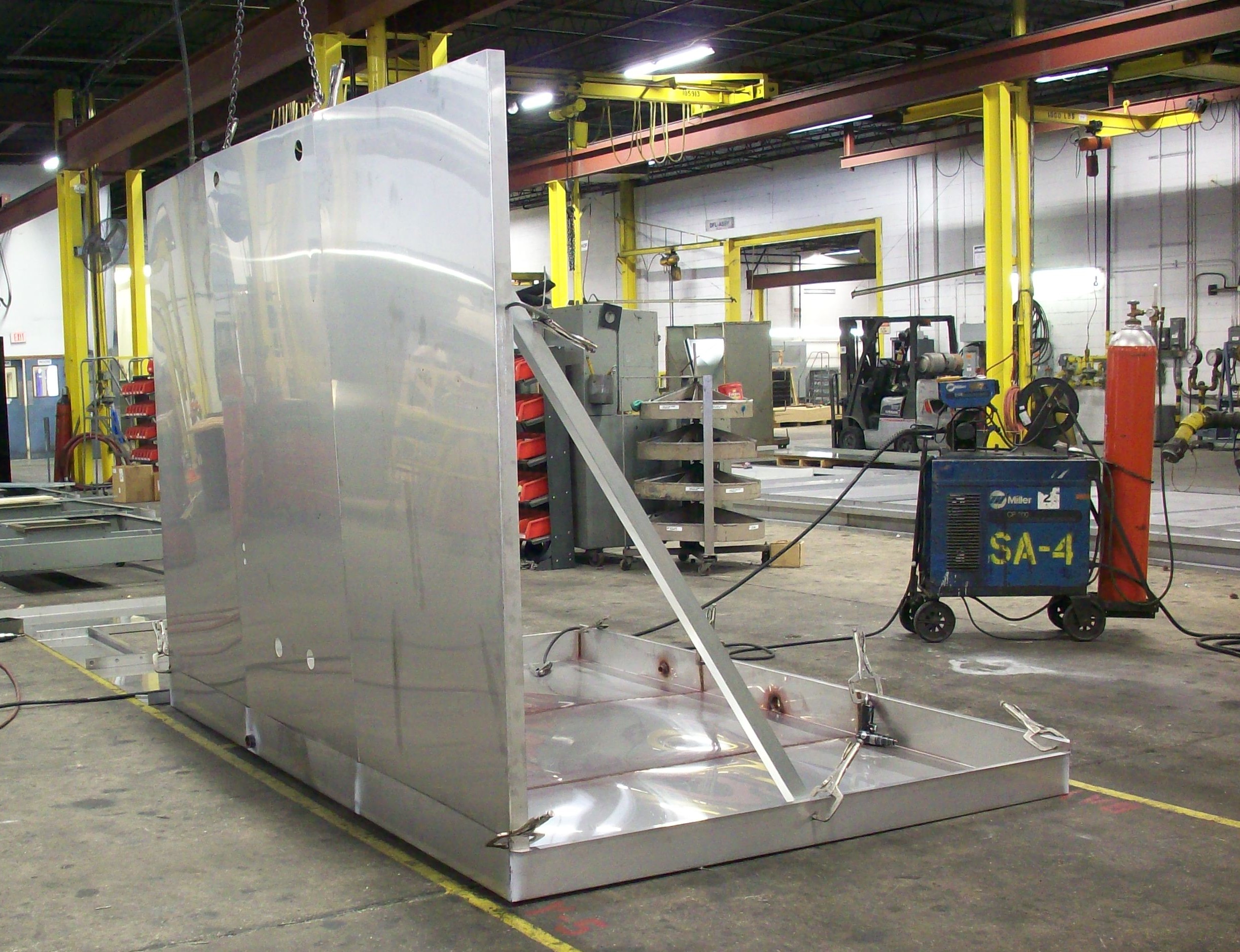

stainless evap sump and walls

Stainless steel for longer life

Sump and walls

Because evaporative cooling units by definition are exposed to water virtually all the time the use of stainless steel for sumps and, if desired, walls is important for product longevity.
