MATO

Modular Air Turn Over

This unit boasts an impressive height, standing tall at 21 feet when all the modules are purchased. One of its key features is its customizable nature, ensuring you only pay for the components you require. For instance, if heating is unnecessary, you can opt out of that section. Additionally, certain components are designed to slide out smoothly, resembling drawers for ease of access and maintenance. To add to its usefulness, the unit is equipped with convenient handles located strategically.

Learn More about Air Turnover Products

Air Turnover

Features

  • 2" Aluminum frame construction with foam filled doors and removable panels
  • Dynamically balanced backward inclined direct drive plenum fans with VFD
  • Modulating gas heating options, indirect gas fired: 81% EFF (complies with doe) & 93% EFF
  • UI 1995 Certification
  • Chilled water or direct expansion cooling coil
  • Insulated drain pans
  • Gas heating turndown up to 40:1
  • DDC controls BACnet or Modbus
  • Indoor & outdoor installations
  • Screened return and supply air openings
  • Non-fused disconnect switch
  • Optional: Single deflection high velocity grilles
  • Optional: Single sided outside air & return air mixing station
  • Optional: Filtration MERV-8 and/or MERV-13
  • Optional: Temperature or enthalpy economizer
  • Optional: Inlet hood with filters
  • Optional: SCR controlled modulating electric heat
  • Optional: Low pressure drop, low leak dampers with edge seals and blade jambs
Read More

Literature

Take a look at our complete Literature Library for even more information

Literature Library

Select only the elements you need for your project

Modularity equals flexibility

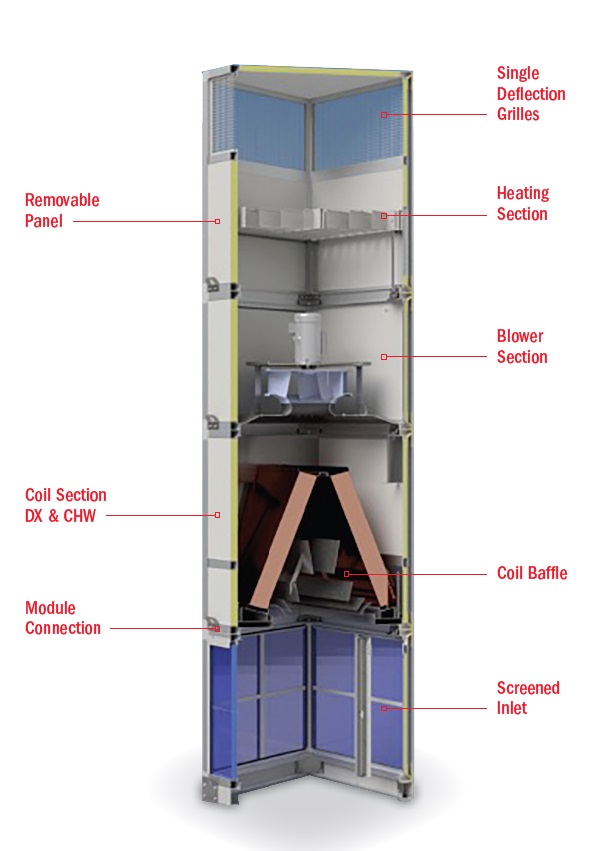

The modular design of the MATO allows you to select only the type of system you need for the project...and not pay for elements or features that you don't need. Each section is designed to mate with the adjacent section for quicker installation. You can start with the most basic unit...an air handler with filters...or choose a heating-only unit...or a cooling-only unit...or a complete HVAC solution..

thumbnail_MATO cutaway
DOECEC
Need High Efficiency?

Highest Efficiency

exceeds DOE minimum

Verified System Performance through third party certification testing. Foam insulated panels reduce skin loss & condensation. Air throw verified by CFD ensures performance and coverage. Gas heat exchanger efficiencies of 81% or 93% meet or exceeds DOE minimum. Low leak dampers reduce energy consumption. Fan/motor assembly with an FEI >= 1.0 meets DOE & CEC energy standard. Soft start fan operation minimizing initial surge currents.

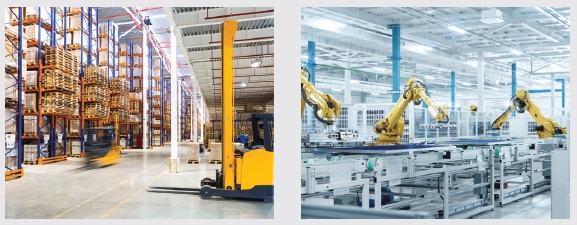

where to use it -open spaces and manufacturing

Large Open Storage Spaces

• Warehouse and Distribution Centers
• Home improvement and DYI stores
• Wholesale clubs
• Aircraft hangars
• Food processing and packaging
• Yacht and boat storage
• Railroad round house

thumbnail_MATO mfg app
thumbnail_MATO sports

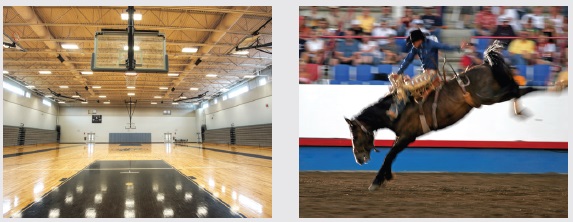

where to use it - sports

Sports Facility Applications

• Professional, collegiate, and high school practice arenas
• Large health clubs
• Rodeo
• Indoor soccer and track
• Activity centers

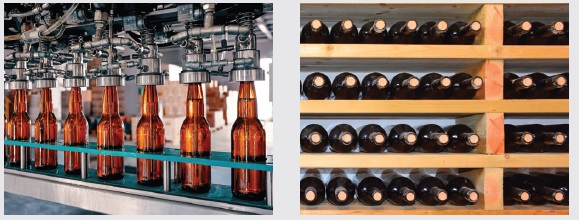

where to use it - temperature sensitive products

Product Sensitive Applications

• Dry good storage
• Pharmaceuticals
• Wine and liquor
• Candy
• Steel storage

thumbnail_MATO sensitive product
Modular Design

Shortest Lead Times

Common Components

Modular design with common components. Standard selections unit can be delivered in 6 to 8 weeks. Long lead items will be stocked to shorten manufacturing time.

Easy Service

Trouble-Free Serviceability

Reduced Costs

Easy Service accessibility thru doors or panel removable from the exterior reduces maintenance costs. VFD provides adjustment for desired airflow. DDC control announces alerts and faults.
